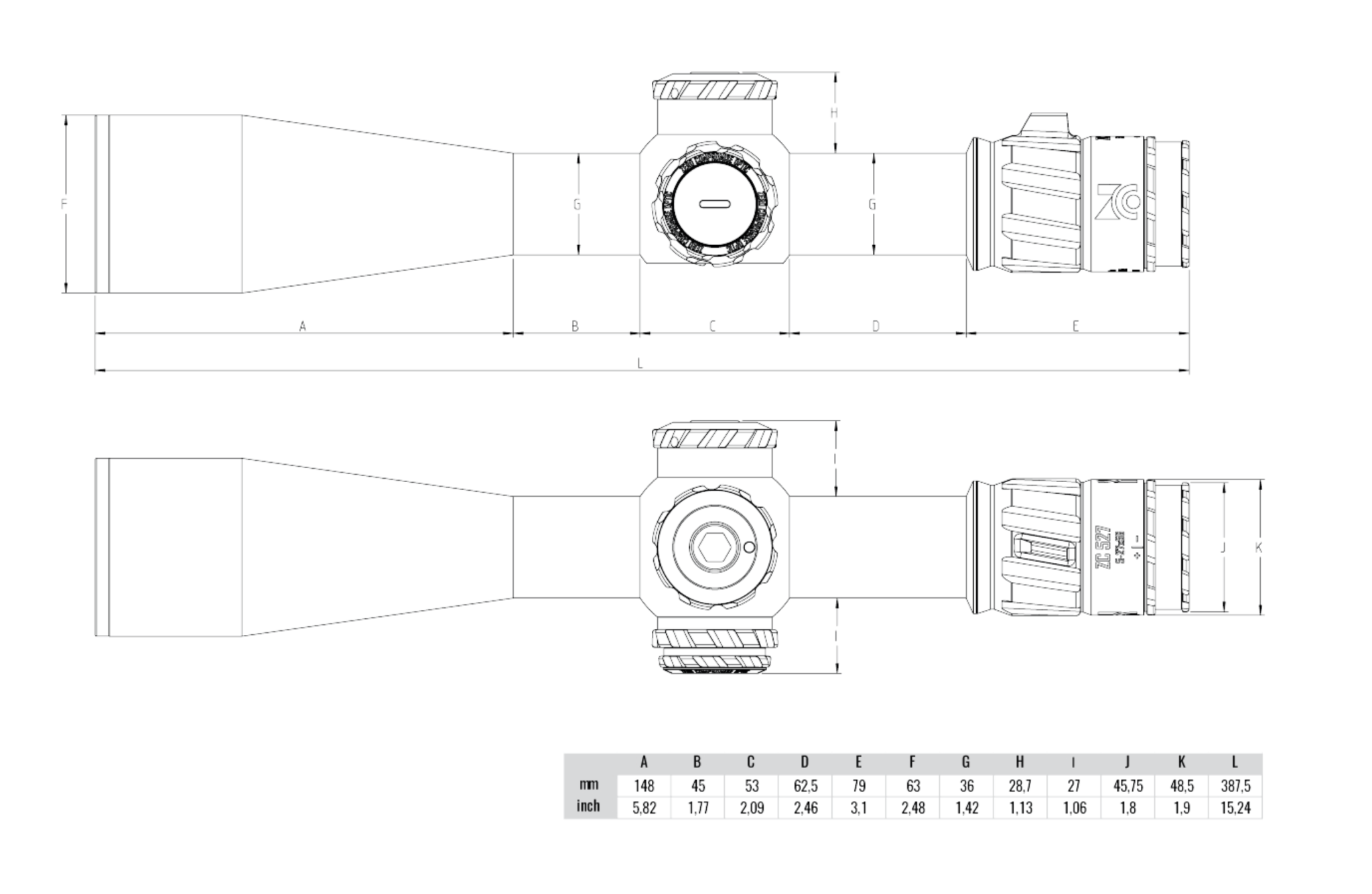

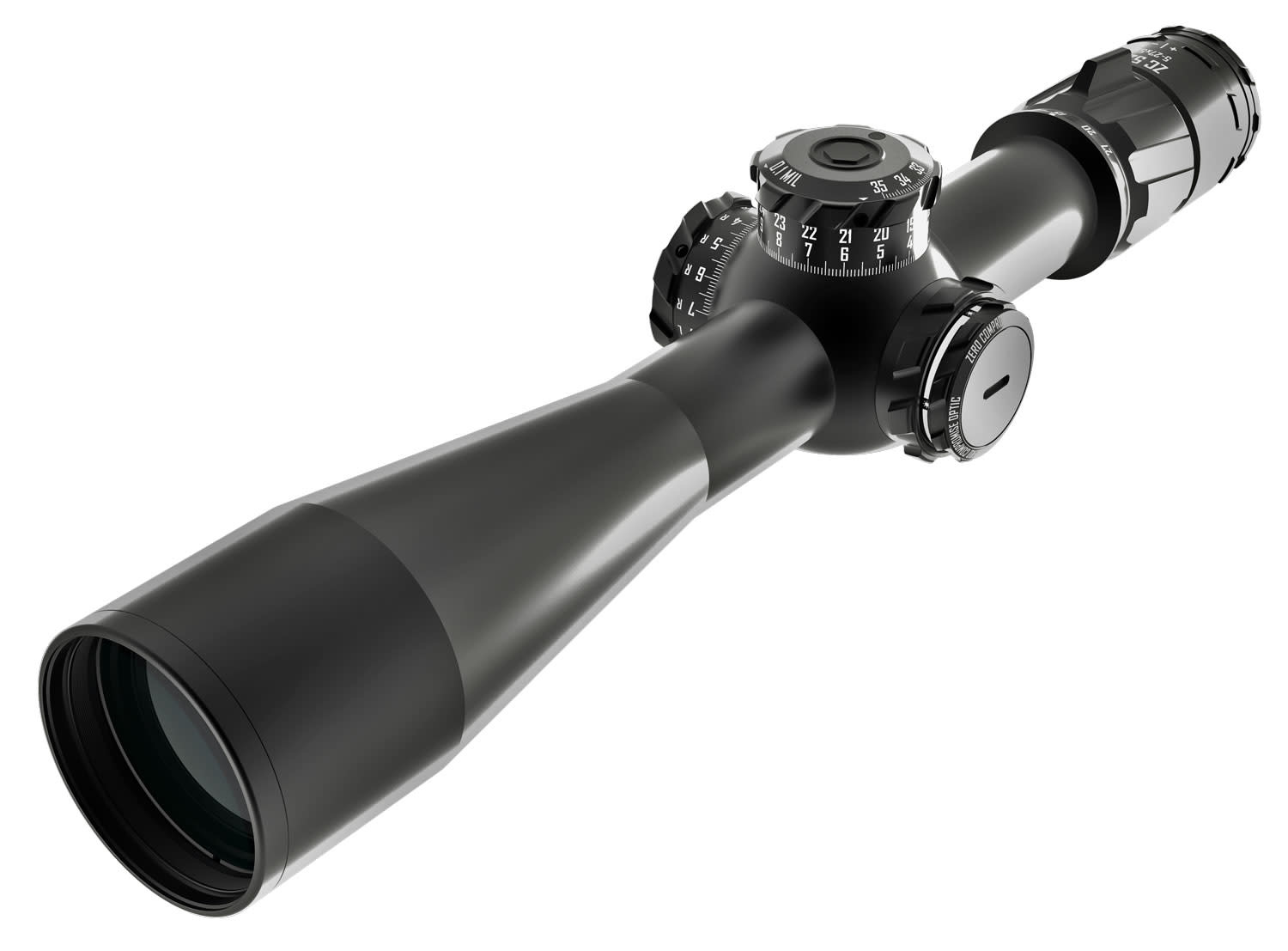

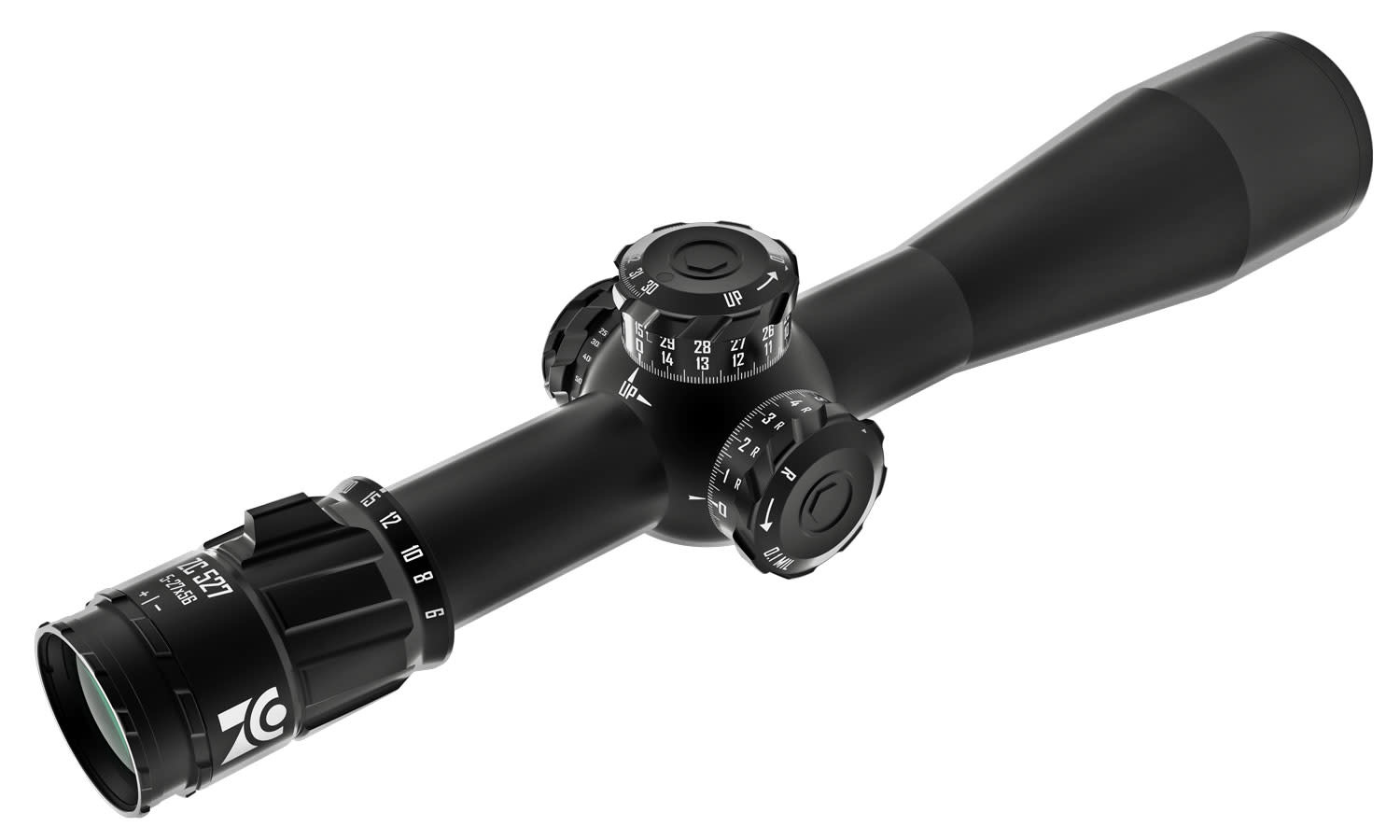

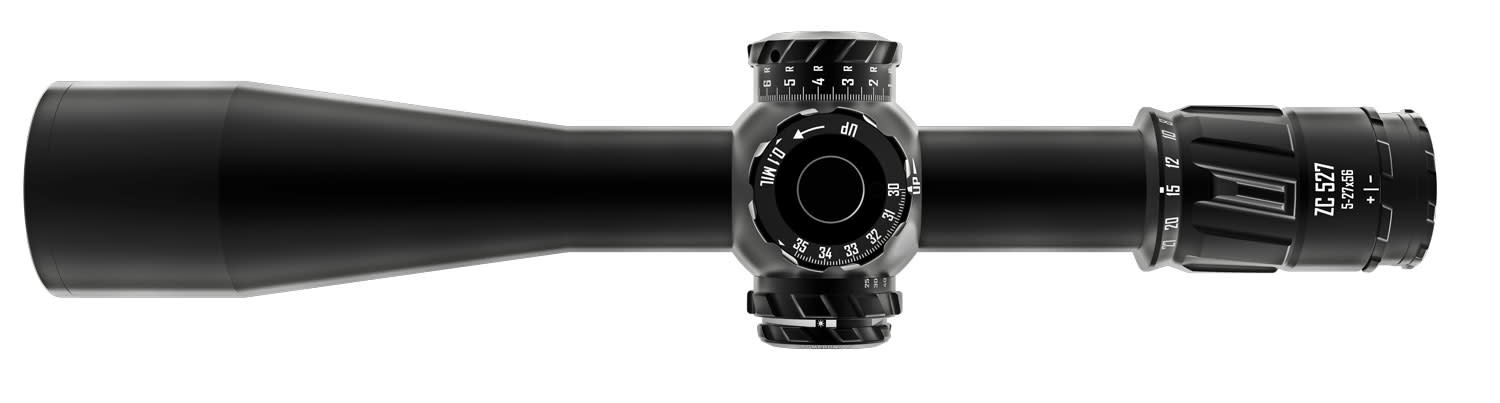

The Zero Compromise Optic ZC527 is 387mm (15.24 inches) long, weighs only 1075g (37.9oz) and reaches an unprecedented 35 mil of internal elevation travel in 2.25 turns along with 20 mils in windage adjustment. Add to that optical performance that’s out-of-this-world, and you have a scope that is truly in a class of its own!
ZC527’s 5X low magnification range provides a wide field of view (21 feet) for rapid target acquisition and close-range action. While at the top end of its x27 magnification, you’ve got a long-range shooter’s dream where target engagements up to 1000 yards and beyond are in achievable.
UNSURPASSED OPTICAL PERFORMANCE
ZCO’s optical engineers have set the next standard for clarity, light transmission and resolution in a compact scope package. Never before has such performance been seen in this magnification range and lens size. Total light transmission is 92% while maintaining excellent colour fidelity matched with best in class resolution for the ultimate viewing experience.
ADDITIONAL CORE FEATURES:
- 36mm Main Tube
The tube delivers optical and mechanical systems that work in unison for supreme performance – no compromises. With more internal room, optical components are better protected to withstand external distortion, stress and impacts. Further, extra room means ZCO can deliver larger lens components for remarkable optical quality, while providing massive amounts of elevation and windage travel. In this case, big is better; significantly better.
- 56mm Objective with ED Lenses
ZCO scopes use Extra-low Dispersion (ED) lenses for the objective components to maximize resolution, colour correction, and contrast. These larger lens components bring better light transmission, flatness of field, and premium resolution.
- Multiple Illumination Settings
The illumination ring can be off, low light, 0-day time brightness, and shooters can choose between red and green illumination. (Including levels compatible for night vision.)
- AIM Automatic Illumination Management
ZC527 uses advanced sensing capability to detect when the rifle is out of shooting position to conserve battery life. Illumination is deactivated by the AIM when the scope exceeds 75 degrees in up or down angle tilt or when exceeding 45 degrees to either side.

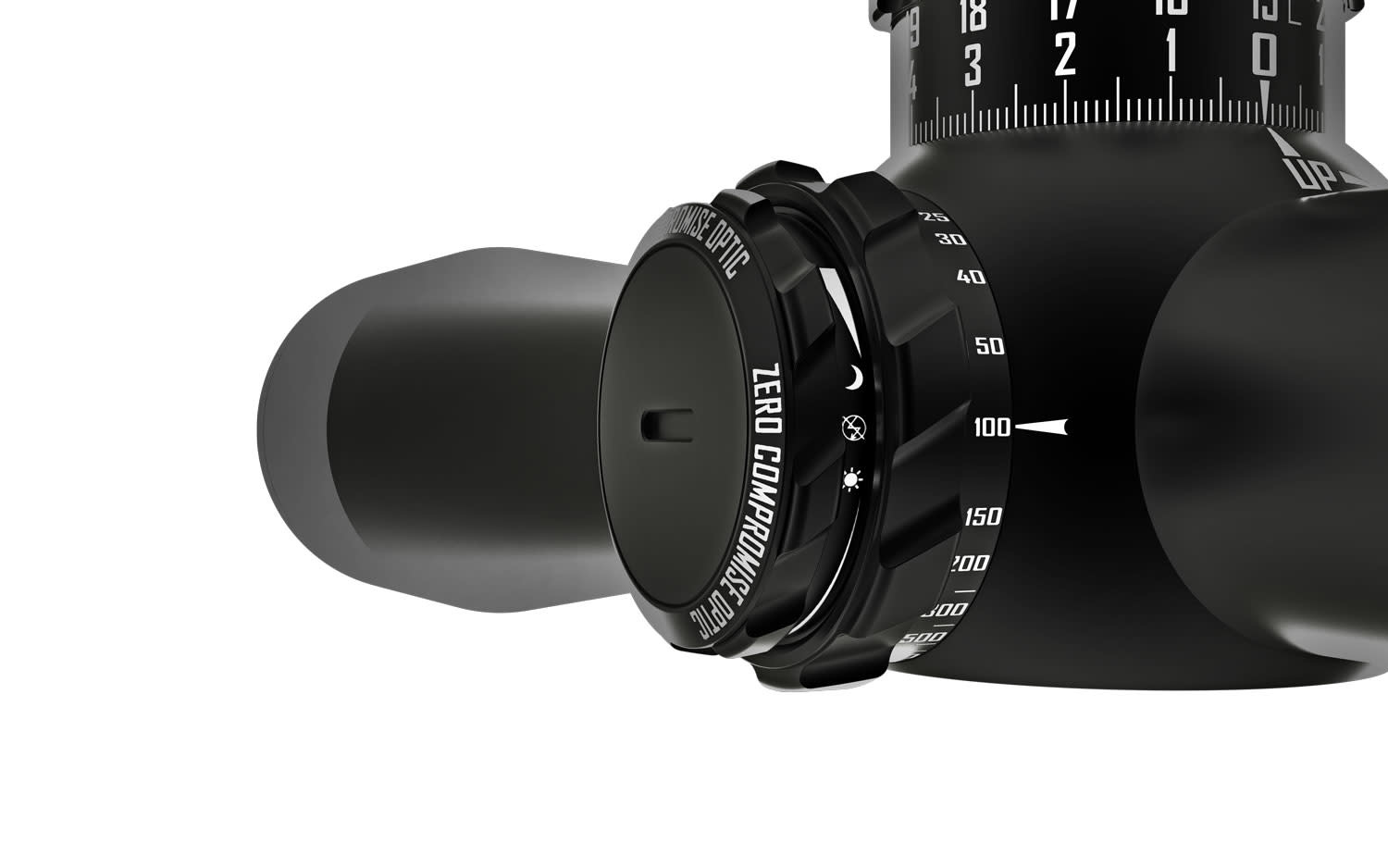

- Rapid Parallax Adjustment
An excellent balance of speed and precision making it quick, accurate and naturally easy to establish a parallax-free image with zero backlash – even under heavy mirage or other challenging conditions. This is accomplished in about 190 degrees of rotation. Dial rotation is smooth with a lot of travel for maximal precision.
- Fast Focus Locking Diopter
Provides rapid, precise reticle focus. Its lock ensures diopter settings aren’t unintentionally changed.

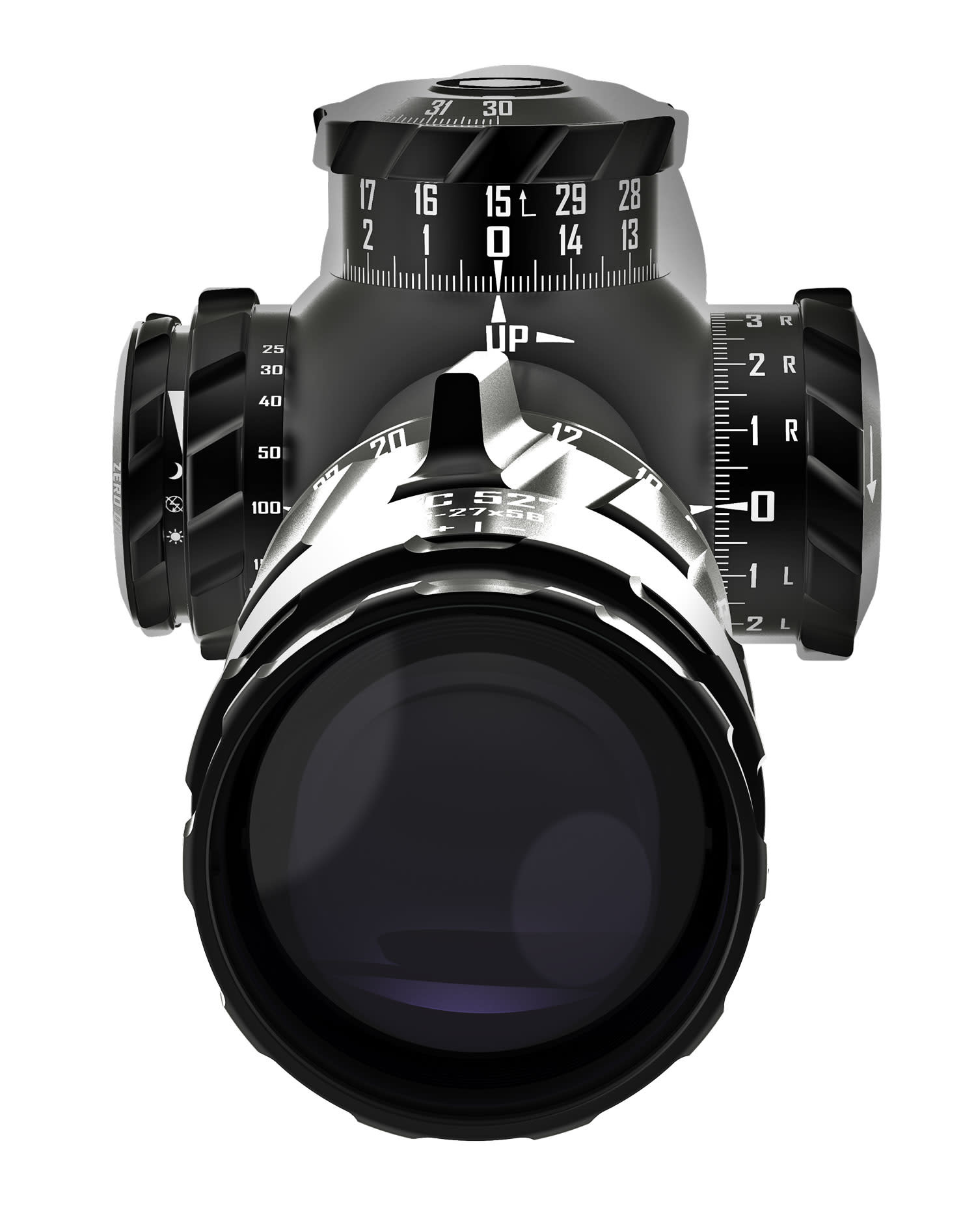

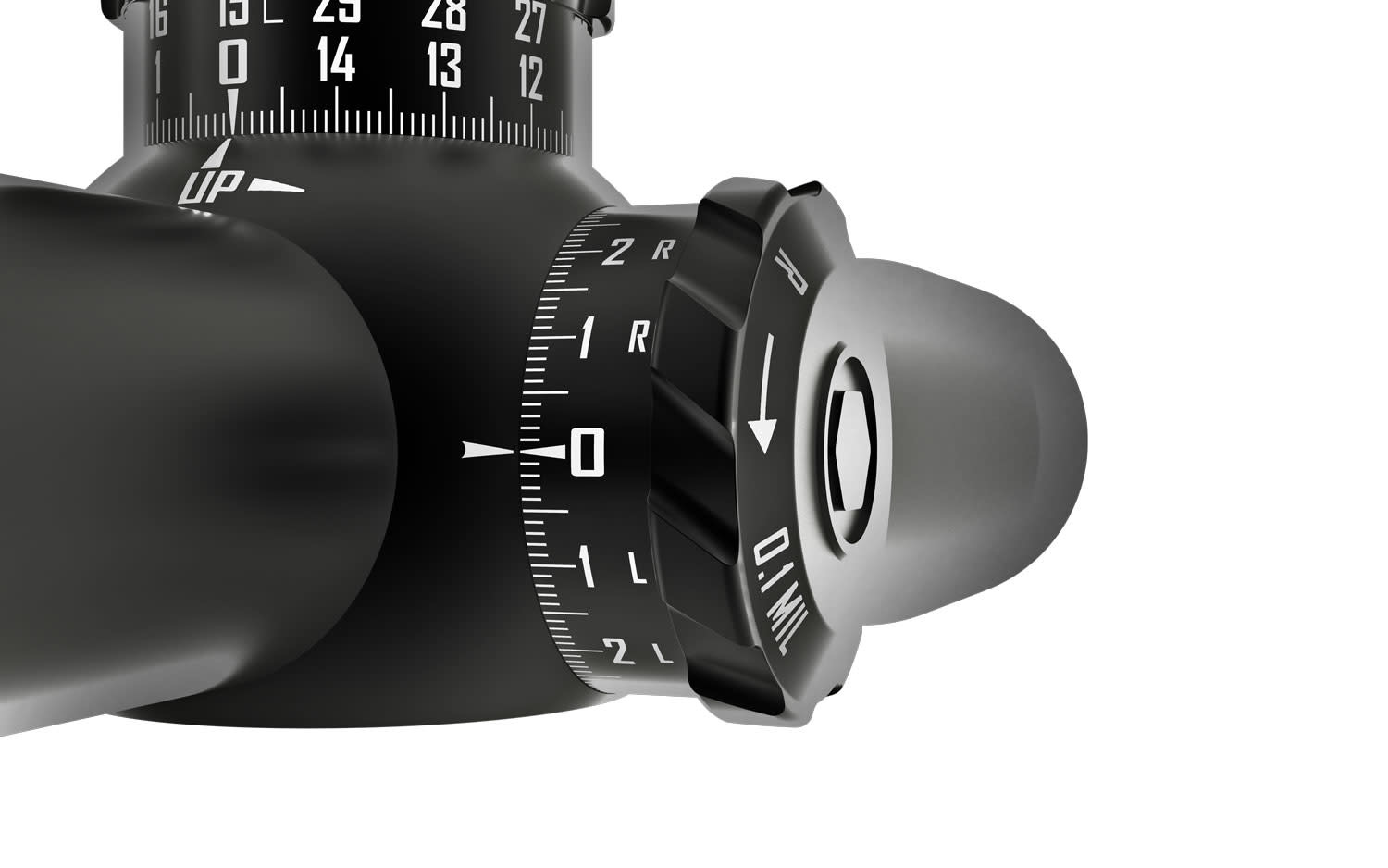

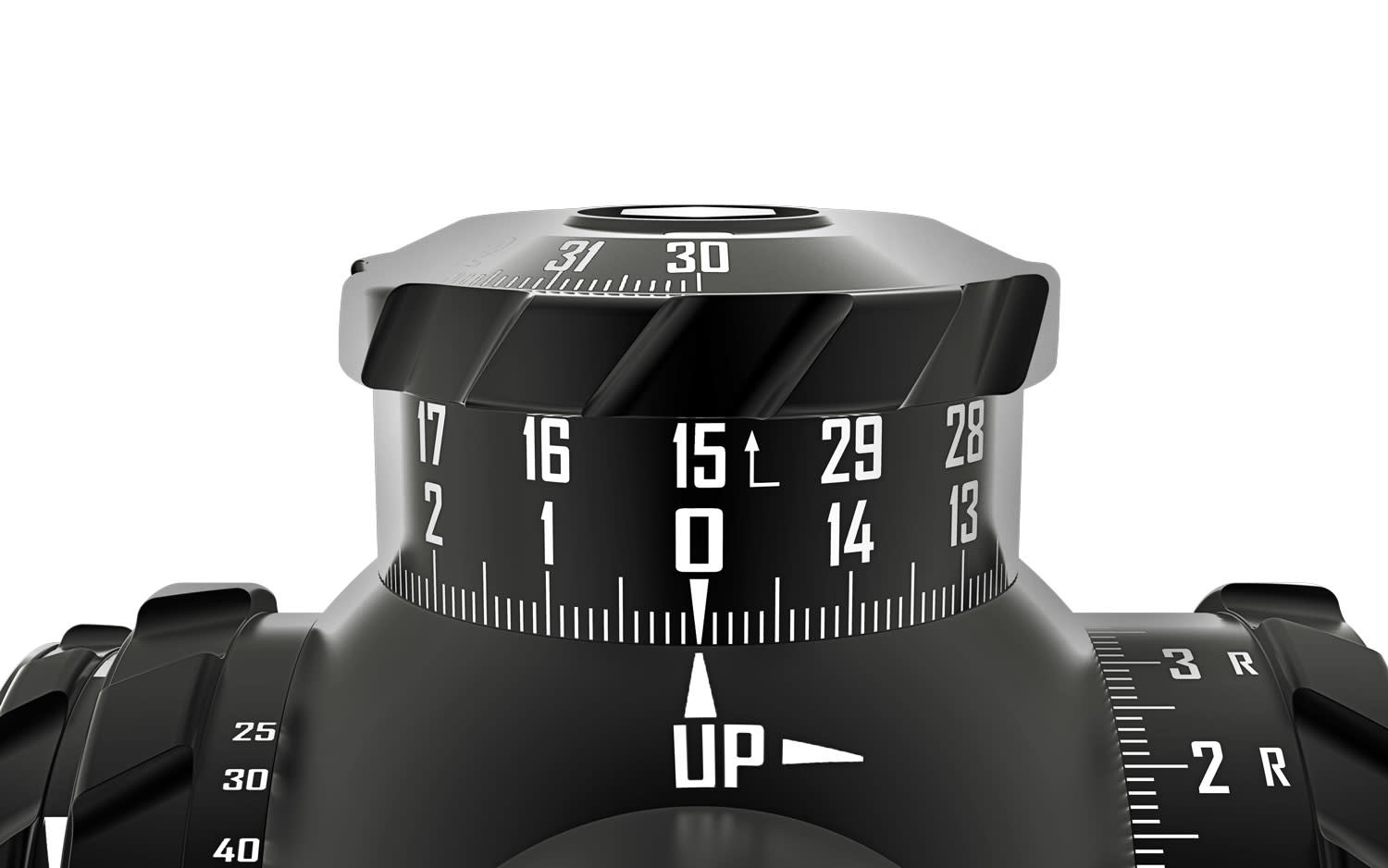

- Turrets like no other
Very audible, super-precise, perfect visual alignment and lockable – these turrets provide the ultimate in consistency and repeatability. Elevation and windage click-spline mechanisms are built using hardened steel that’s eroded cut for the highest level of precision. They also have a large adjustment range for elevation and windage travel.
- Maximum Field of View
Industry-leading eyepiece lens design delivers maximum field of view (21.0’ – 4.5’ FOV) a substantial eye box, eye relief, and flatness of field. The eyepiece is built for comfort – even in all day use.
- Magnification Change Lever (MCL)
Machined into the magnification ring so it is ergonomic, snag-free, won’t hinder bolt manipulation. ZCO gives great consideration to rotational torque of all controls, so rapid changes of any control are possible with smooth and consistent torque – even in freezing conditions. The magnification ring is slightly raised and its numbers enlarged so it can easily be seen and accessed from a shooting position.
- Real Rugged
Every material has been carefully selected for its ability to withstand constant cycling with zero compromises to performance. Critical junctions and mechanical areas are stronger thanks to a thicker cross-section in specific areas.

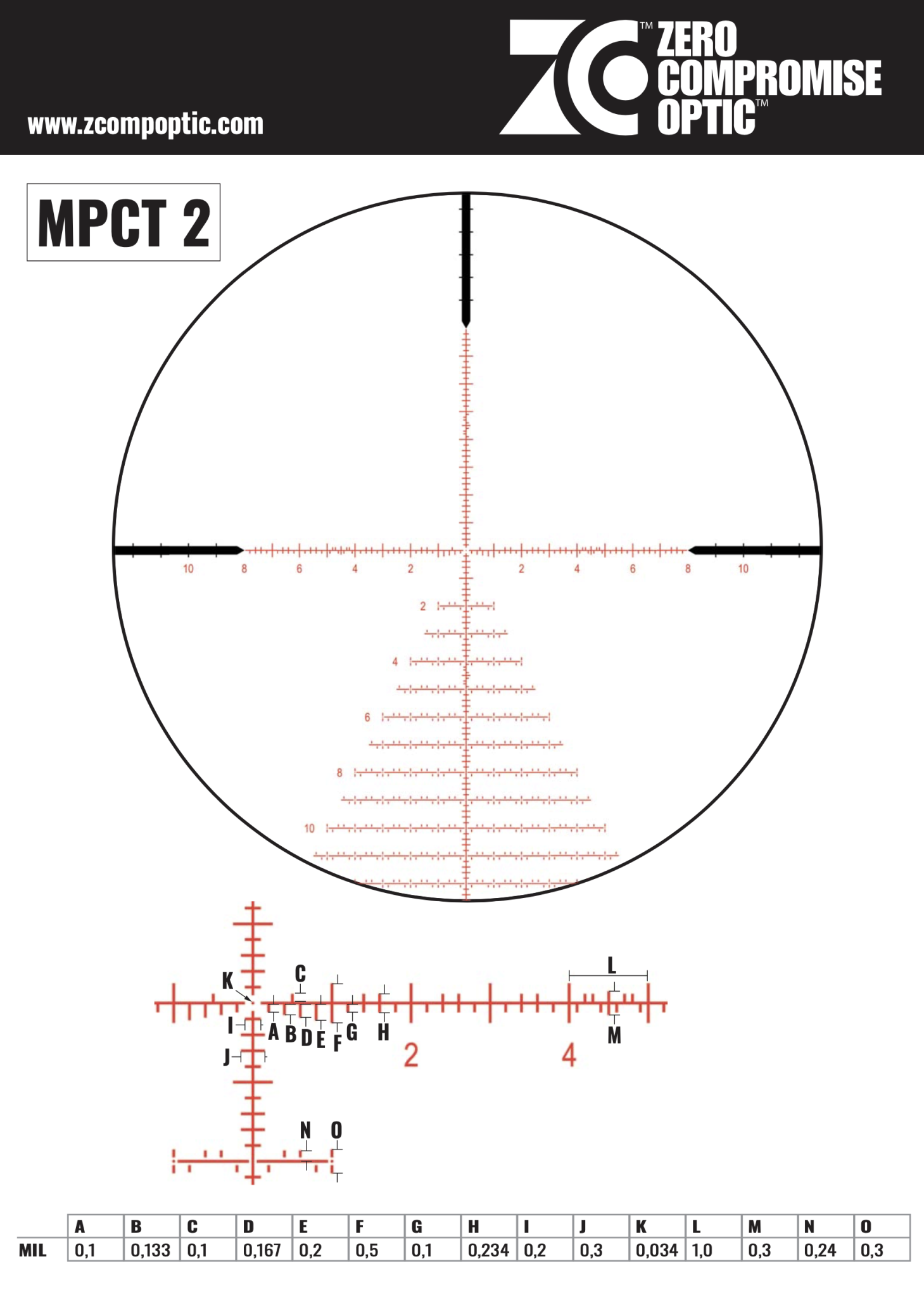

ABOUT THE MPCT 2 RETICLE
The Mil Precision Competition and Tactical (MPCT) 2 is the preferred reticle of competition marksmen. A minimal holdover style mil reticle with enough reference points to handle nearly all situations and yet provide a clear target picture. This reticle offers 0.2 mil indications throughout the entire reticle yet provides a very clean and organised appearance helping you hit your targets faster and more efficiently.
