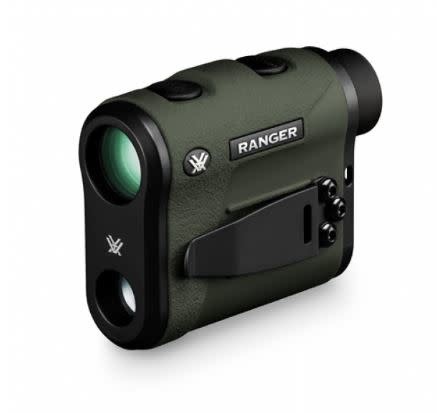

Capable of ranging targets to 1,800 yards, the Ranger® 1800 gives hunters and shooters the distance data needed to make accurate shots. Primary HCD (Horizontal Component Distance) mode displays an angle-compensated distance reading. Easy to use with a clean display and highly intuitive menu, the Ranger 1800 keeps things simple, yet provides a high level of performance.
Fully multi-coated lenses deliver optimal light transmission and o-rings seal the Ranger 1800 for waterproof performance. Can be set to read in yards or meters to accommodate user preference. Ideal for gun hunters, target shooters and bowhunters, the Vortex Ranger 1800 is sure to be a hit—and ensure hits.
Compact, ergonomic and lightweight, the Ranger 1800 is easy to pack or hang around your neck using the included lanyard. The adjustable, utility clip mounted to the body offers an innovative way to clip the unit to a belt, pocket, or other flat edged surface for easy access. Clip can be mounted to right or left side of the unit or completely removed. Runs on common CR2 battery.
FEATURES
OPTICAL FEATURES
Fully Multi-Coated Lenses Anti-reflective lens coatings provide brighter views.
CONSTRUCTION FEATURES
Waterproof O-ring seals prevent moisture, dust, and debris from getting inside for withstanding harsh weather conditions.
Rugged Design Built to handle tough situations. Compact and lightweight.
Rubber Armor Provides a secure, non-slip grip.
Diopter Adjusts for precise focus.
Utility Clip Provides quick, convenient access.
Tripod Adaptable Compatible with a tripod adapter, allowing use on a tripod or car window mount.
PERFORMANCE FEATURES
HCD Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS Line of Sight (LOS) mode displays actual line of sight range.
Scan This feature displays continual distance readings when panning across a landscape or tracking a moving animal.
Easy-to-use Menu Intuitive, easy-to-use menus feature a simple, clean illuminated display.
Ranging Format Range in yards or meters.
SPECIFICATIONS
Range Reflective 9-1800 yards
Range Deer 9-900 yards
Accuracy + / - 3 yards @ 1000 yards
Max Angle Reading +/- 60 degrees (INC 50)
Magnification 6 x
Objective Lens Diameter 22 mm
Linear Field of View 315 feet/1000 yards
Angular Field of View 6 degrees
Eye Relief 17 mm
Operating Temperature 14°-131°F
Length 9.9cm / 3.9 inches
Width 7.62cm / 3 inches
Weight 218 grams / 7.7 ounces
All Vortex Products bought from Extravision are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It's about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn't matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
•Unlimited Lifetime Warranty
•Fully transferable
•No warranty card to fill out
•No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product
